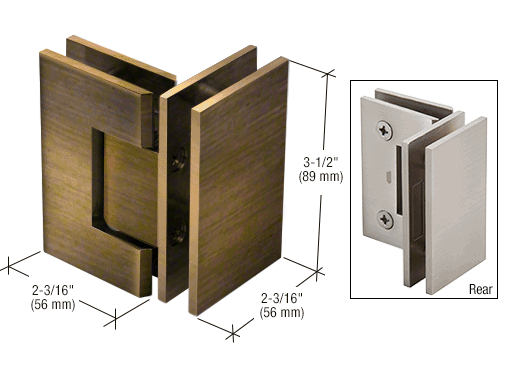

Geneva 90 degree glass to glass hinge

90° glass-to-glass hinge with self-centering and reversible 5° pivot pin

Glass Details

Hinges are sold individually. Using two hinges supports a maximum weight of 36 kg and a door width up to 711 mm; using three hinges supports a maximum weight of 54 kg and a door width up to 813 mm.

• For 8 - 12mm tempered glass

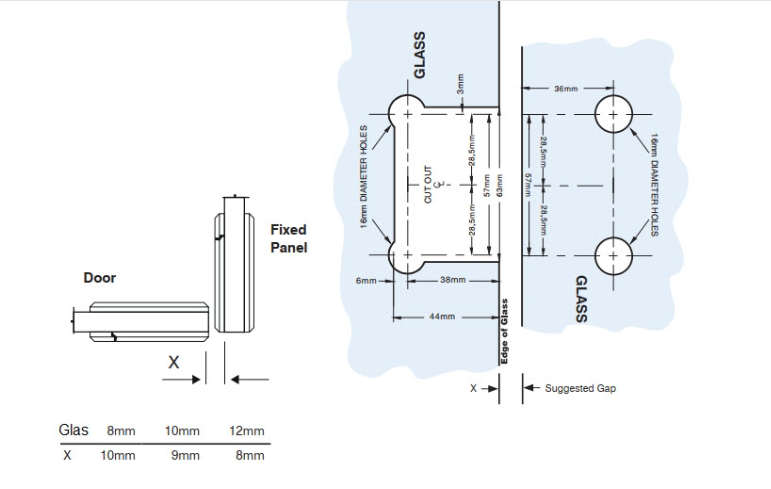

• Cut out details needed
• Comes with rubber gasket suitable for 10-12mm glass; Rubber gaskets for 8mm also available - ATOGGEN13
