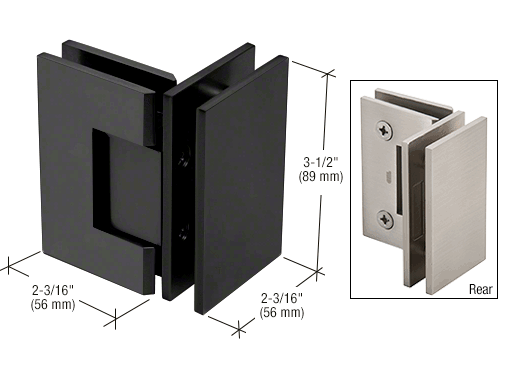

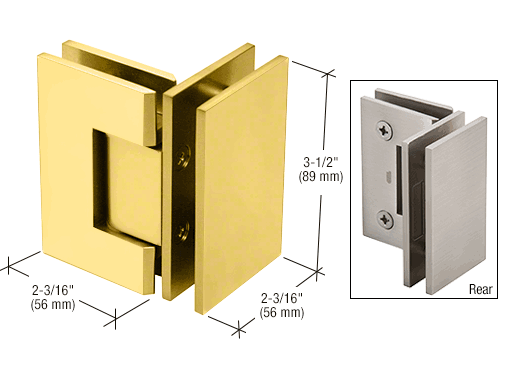

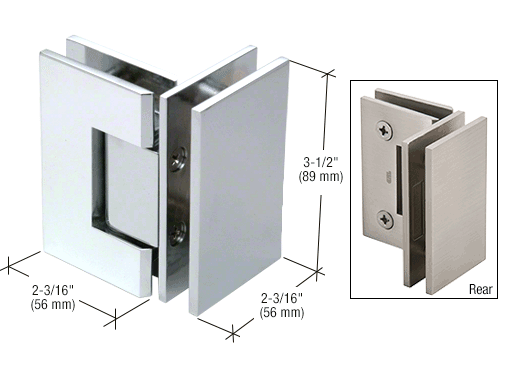

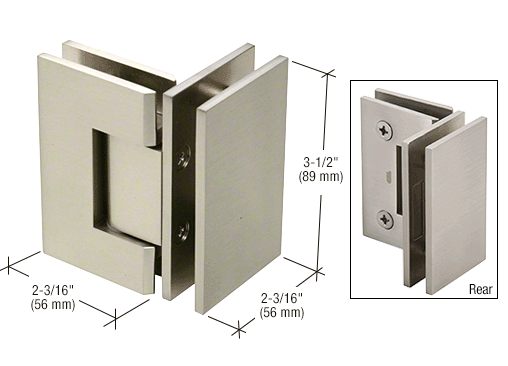

Geneva 90 degree glass to glass hinge
SKU ATOGGEN092CH
Original price
£72.90
-
Original price
£114.20
Original price
£72.90
£72.90
-
£114.20
Current price
£72.90
| /
90° glass to glass hinge with self centering and reversible 5° pivot pin
Glass Details
Hinges are sold individually.
Using two hinges supports a maximum weight of 36 kg and a door width up to 711 mm; using three hinges supports a maximum weight of 54 kg and a door width up to 813 mm.
- For 8 - 12mm tempered glass

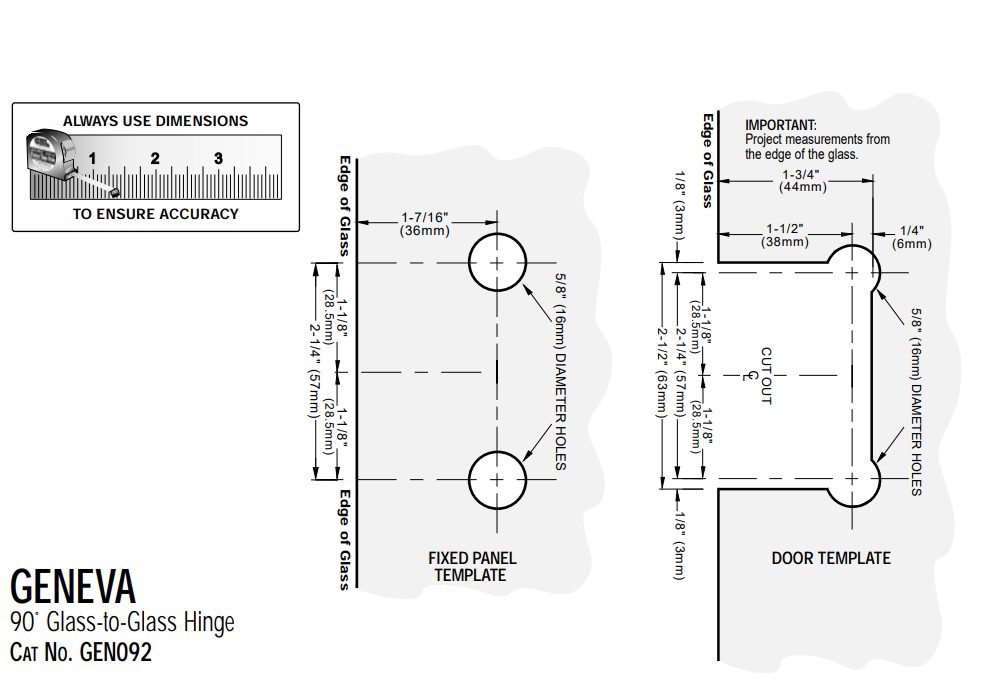

- Cut out details needed
- Solid brass, lacquered finish
- Hinge Swings: 90º In and 90º Out
-
Comes with rubber gasket suitable for 10-12mm glass; Rubber gaskets for 8mm also available - ATOGGEN13
