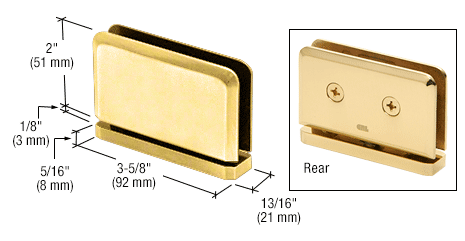

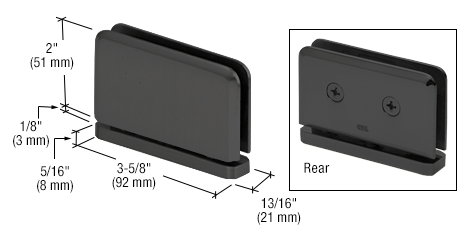

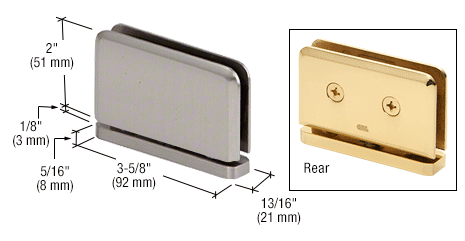

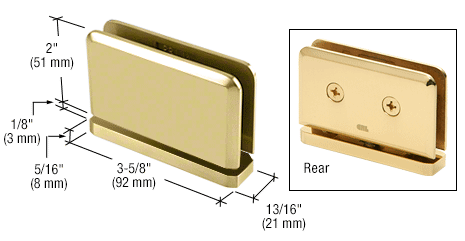

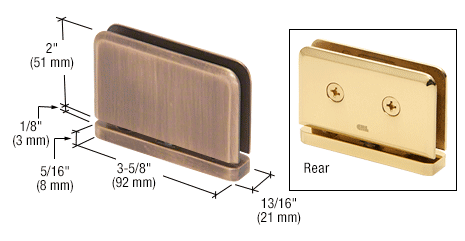

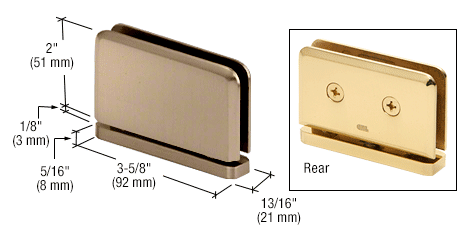

Prima top & bottom mounted hinge

The Prima Series pivot hinge provides strong, reliable support for frameless shower doors, with a self-centering design for smooth and secure door positioning.

• Suitable for 8 mm and 10 mm tempered glass
• Available for top or bottom mounting
• Self-centering design with four springs for maximum retention strength

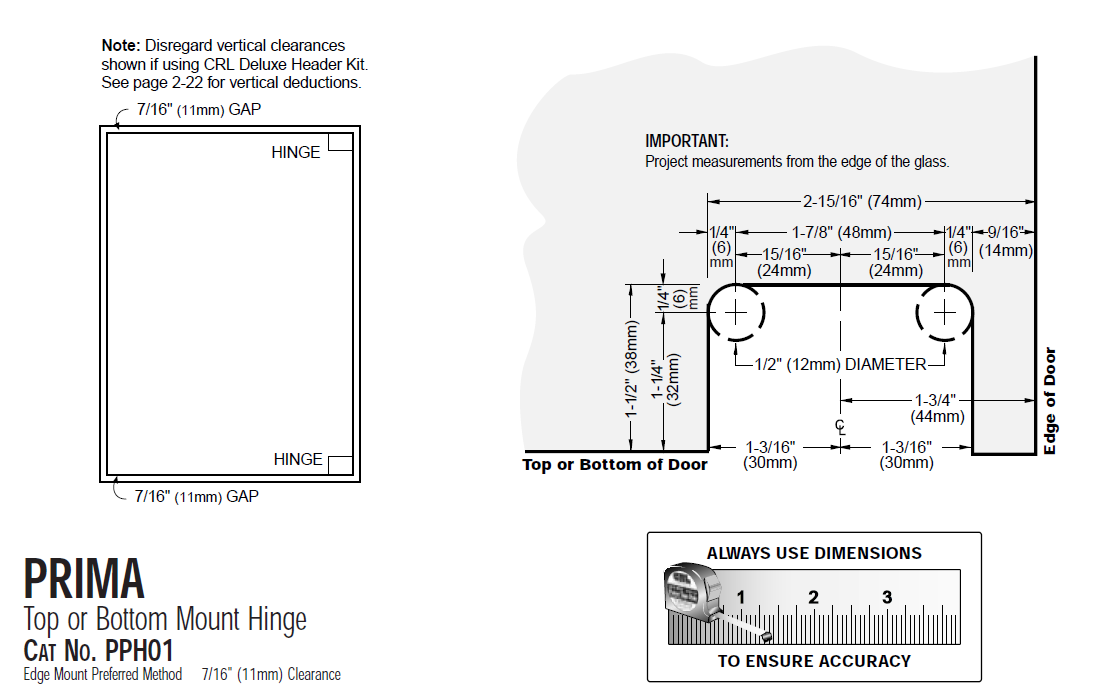

• Can be inset from the wall to provide clearance for towel bars and other projections
• Two hinges support up to 45 kg with a maximum door width of 787 mm

Please note that finishes may vary between products.
