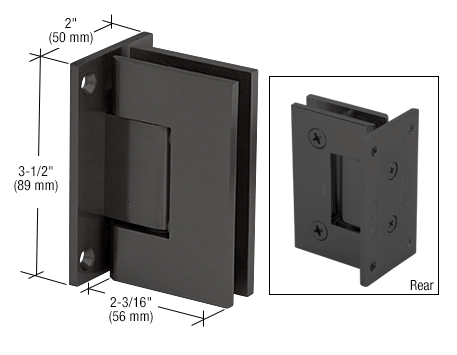

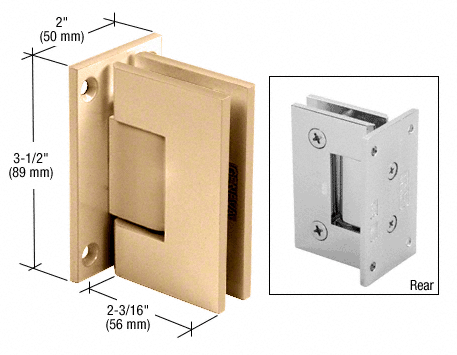

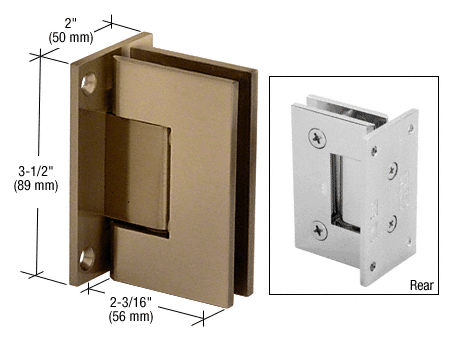

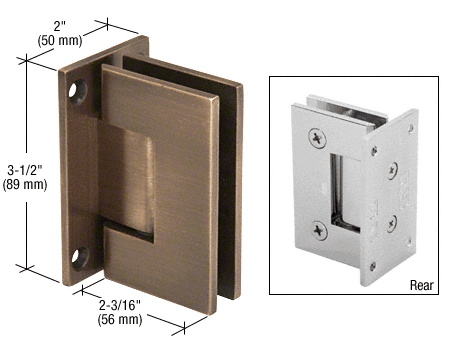

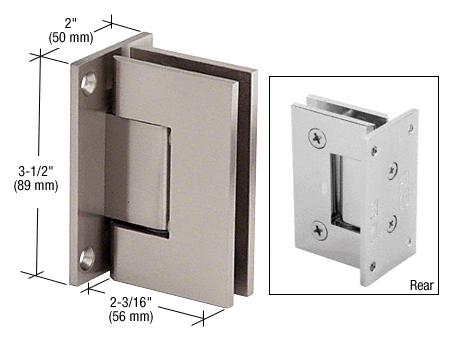

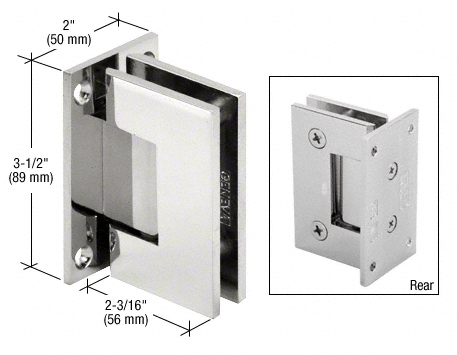

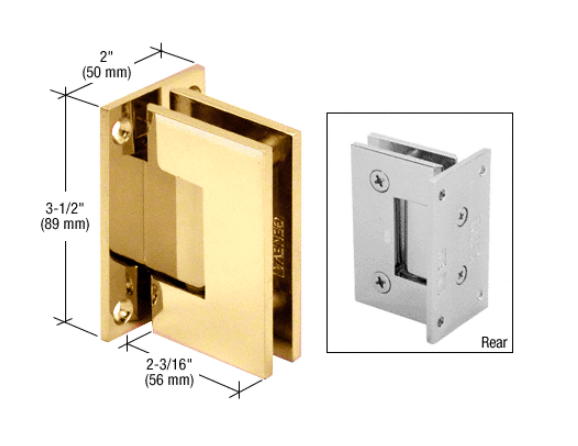

Geneva wall mount full back

Wall-mount full back plate with screws included, featuring a self-centering design and a reversible 5° pivot pin.

Glass Details

Hinges are sold individually. Using two hinges supports a maximum weight of 36 kg and a door width up to 711 mm; using three hinges supports a maximum weight of 54 kg and a door width up to 813 mm.

• For 8 - 12mm tempered glass

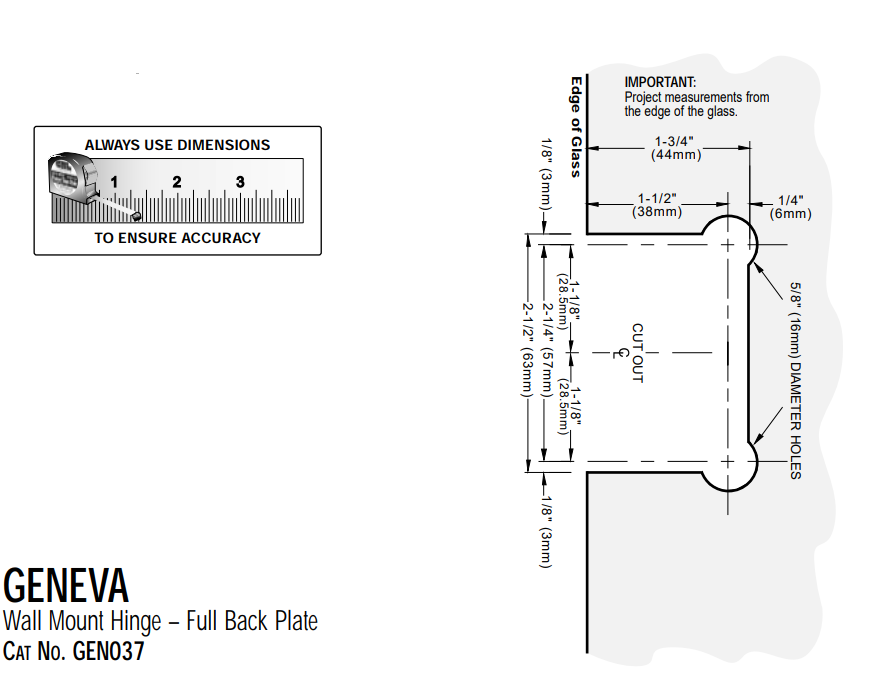

• Cut out detail needed
• Comes with rubber gasket suitable for 10-12mm glass; Rubber gaskets for 8mm also available - ATOGGEN13

• Hinge Swings: 90º In and 90º Out

*Please note that finishes may vary between products*
