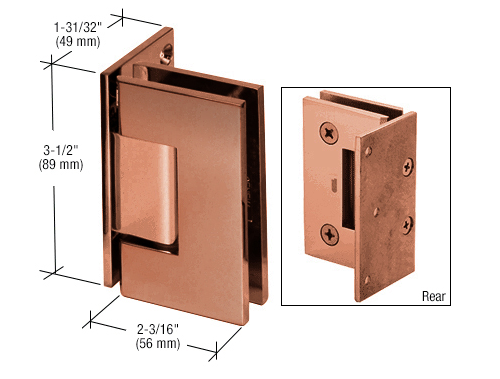

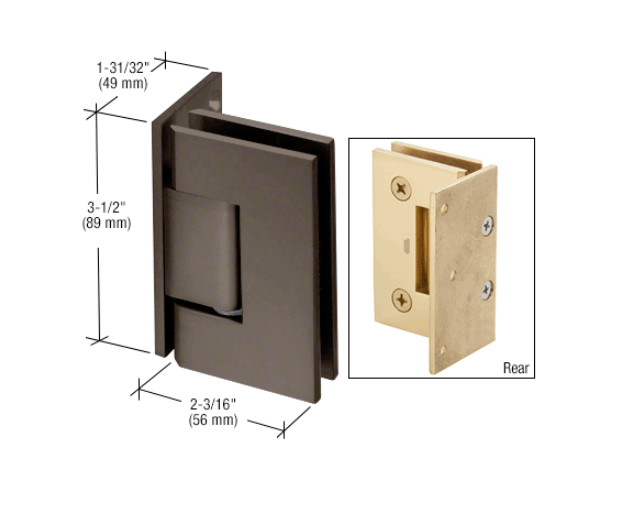

Geneva wall to glass hinge

Includes a wall mount offset back plate and screws, with a self-centering mechanism and reversible 5 degree pivot pin.

Glass Details

Hinges are sold individually. Using two hinges supports a maximum weight of 36 kg and a door width up to 711 mm; using three hinges supports a maximum weight of 54 kg and a door width up to 813 mm.

• For 8 - 12mm tempered glass
• Cut out detail needed

• Comes with rubber gasket for 10mm glass; Rubber gaskets for 8mm and 12mm glass also available - ATOGGEN13


*Please note that finishes may vary between products*
